  • Y-Stainless steel pressure gauge

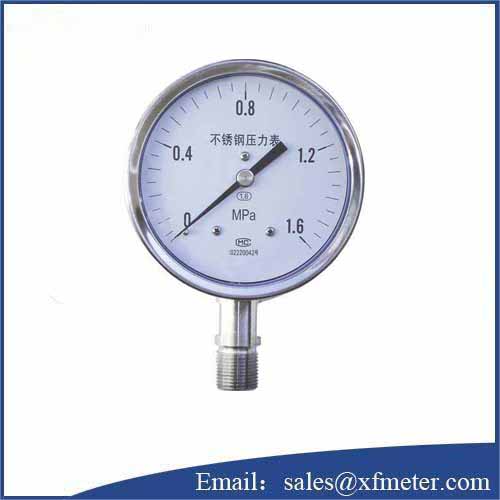

Y-Stainless steel pressure gauge

Y-Stainless steel pressure gauge

  • Brand: Xunfei
  • Explosion Grade: ExdIICT4~CT6
  • Delivery: 1 week Exw
  • Minimual Order Qty: 5pcs
  • Product description: High quality and competitive price of Y-Stainless steel pressure gauge manufacturer in China. Email: sales@xfmeter.com
  • INQUIRY

Brief Description

The Y-Stainless steel pressure gauge is used to measure pressure of various liquid medium in oil, chemical industry, chemical fiber, metallurgy, and power plants widely, it’s corrosion-proof and vibration-proof.


Structure Principle

This gauge consists of pressure pilot system (including joint, spring tube, current limiting screw), gear transmission system, indicating device (needle and scale plate) and shell (including shell, cap, glass). Shell is airtight which protect the gauge from environmental influence and dirt.
For gauges of which the external shell is filled with liquid (always be silicon oil or glycerol oil), which can resist strong vibration and reduce pulsation effect of medium pressure.


Technical Parameters

Environmental temperature: -25~70℃ (external shell is filled with liquid)

-40~70℃ (external shell is not filled with liquid)

Temperature influence: not more than 0.4%10℃ (working temperature deviation 20±5℃)

Anti-vibration grade: V H 4 (external shell is filled with liquid)

V H 3 (external shell is not filled with liquid)

Casing protection grade: IP64

Weight: 0.2kg (Y-60B-F)

0.6kg (Y-100B-F)

1.0kg (Y-150B-F)


Model and Specifications

Model

Scale range, MPa (Hg~Psi)

Accuracy

Y-60B-F

Y-60B-FZ

Y-63B-F

Y-63B-FZ

0~0.6,1,1.6, 2.5,4,6,10, 16, 25, 40,60

-0.1~0.5,0.9,1.5, 2.4

2.5

Y-100B-F

Y-100B-FZ

Y-150B-F

Y-150B-FZ

Y-103B-F

Y-103B-FZ

Y-153B-F

Y-153B-FZ

0~0.1,0.16,0.25,0.4, 0.6, 1,1.6, 2.5, 4, 6, 10,16,25,40,60

-0.1~0,0.06,0.15,0.3,0.5, 0.9,1.5, 2.4

(-30’-0,15,30,60,100,150; 0~15,30,60, 100, 200, 300,400,600, 800, 1000, 1500, 2000,3000, 4000, 6000, 10000)

1.5 (1)


Material of pressure system and casing


Components

Material

Y-60B

Y-100B,Y-150B

Joint

0Cr18Ni9(304)

0Cr17Ni12Mo2(316)

Spring tube

0Cr18Ni9Ti(321)

0Cr17Ni12Mo2(316)

Casing

0Cr18Ni9(304)


NoteIf you have special requirement of Y-Stainless steel pressure gaugefeel free to contact us.
