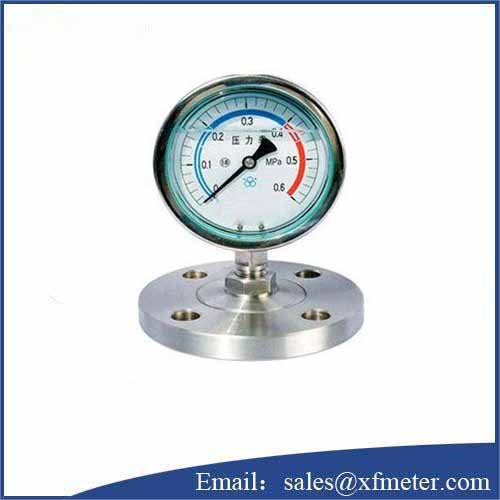

Y-Diaphragm seal pressure gauge

Brief Description

The Y-diaphragm seal pressure gauge applicable to medium which are strong corrosive, high-temperature, high-viscosity, easy to crystallize & solidify, and with suspended solid, also to avoid direct contact between general pressure gauge and medium, to make gauge easy to wash, we combine diaphragm isolator with general pressure gauge, which is a diaphragm-seal pressure gauge. Diaphragm-seal pressure gauge is mainly used in petrochemical industry, alkali-making, chemical fiber, dyeing, pharmacy, and food industries to measure medium pressure.

Technical Parameters

Accuracy: 2.5%, 1.6%

Ranges (MPa)：-0.1～0；-0.1～0.06；-0.1～0.15；-0.1～0.3；-0.1～0.5；-0.1～0.9；-0.1～1.5；-0.1～2.4；0～0.1；0～0.16；0～0.25；0～0.4；0～0.6；0～1.0；0～1.6；0～2.5；0～4；0～6；0～10；0～16；0～25；0～40；0～60；

Working pressure: dead load is up to 3/4 of upper limit; stress alternating is up to 2/3 of upper limit; instant pressure is up to upper limit.

Working environment temperature: -40～70℃ (relative humidity is not more than 85%)

Temperature influence: when working temperature deviation is 20±5℃, the error change is not more than 0.6%/10℃.

Pressure measuring element: double capsule

Case: stainless steel

Scale: stainless steel

Needle: aluminum, black

Gauge glass: common glass

Connection: flange type, thread connection

Gauge is with micro zero-adjusting device

Note：If you have special requirement of Y-diaphragm seal pressure gauge，feel free to contact us.
