RTD

  • WZP-F Anti corrosion RTD

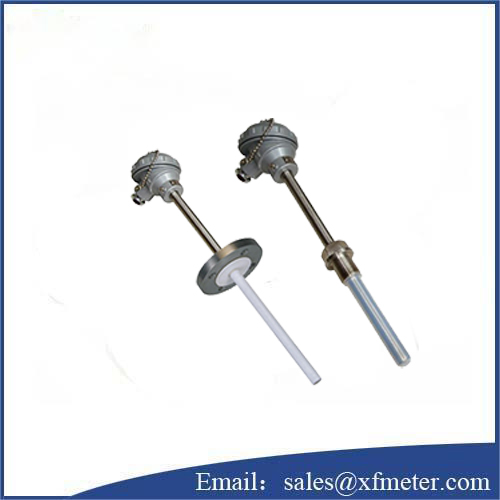

WZP-F Anti corrosion RTD

WZP-F Anti corrosion RTD

  • Explosion Grade: ExdIICT4~CT6
  • Delivery: 1 week Exw
  • Minimual Order Qty: 5pcs
  • Product description: High quality and competitive price of WZP-F Anti corrosion RTD manufacturer in China. Email: sales@xfmeter.com
  • INQUIRY

Brief Description

WZP-F Anti corrosion RTD measurement accuracy is widely used in corrosive industrial to measure the temperature. WZP-F Anti corrosion RTD includes corrosion-resistant copper and platinum resistance; anticorrosion platinum resistance is the most commonly used type in low temperature zone. It’s with high accuracy and stable performance.

WZP-F Anti corrosion RTD can be used in corrosion-proof of sea water, all kinds of chloride and hypochlorite, oxidizing acid (including fuming sulfuric acid), organic acid, alkali. Not resist corrosion from pure reducing acid, such as quicksand, hydrochloric acid, but when acid contains oxidizing agent such as acid (such as nitric acid, Fe++ +, Cu++), the corrosion is greatly reduced.

Main Tech Data

Name

Graduation

Measure range

Allowable difference △t(℃)

PT Resistance

Pt100

-200~+420

A or B level

Cu Resistance

Cu50

-50~+100

±0.3+6X10-3∣t∣

Other tech data conforms to JB/T9238-1999 (Industrial thermocouple tech document) and JB/T8622-1997 tech document.

Model and spec

Anti-corrosion RTD (PT100)

Model

Graduation

Coating

Measure range ℃

Tube d

Spec

WZP-130F

WZP-230F

WZP-330F

WZP-430F

Pt100

F

-200~250

16+2

300×150

350×200

400×250

450×300

550×400

650×500

900×750

1150×1000

1650×150

TC

WZP 2-130F

WZP 2-230F

WZP 2-330F

WZP 2-430F

T

-200~500

16

WZP-131F

WZP-231F

WZP-331F

WZP-431F

F

-200~250

12+2

225×75

250×100

300×150

350×200

400×250

450×300

550×400

650×500

900×750

1150×1000

TC

WZP 2-131F

WZP 2-231F

WZP 2-331F

WZP 2-431F

T

-200~500

12

WZC-130F

WZC-230F

WZC-330F

WZC-430F

Cu50

F

-50~100

12+2

TC

T

12

Note: For special requirement of the WZP-F Anti corrosion RTD, please contact the manufacturer.
