RTD

  • WZ Sheathed RTD

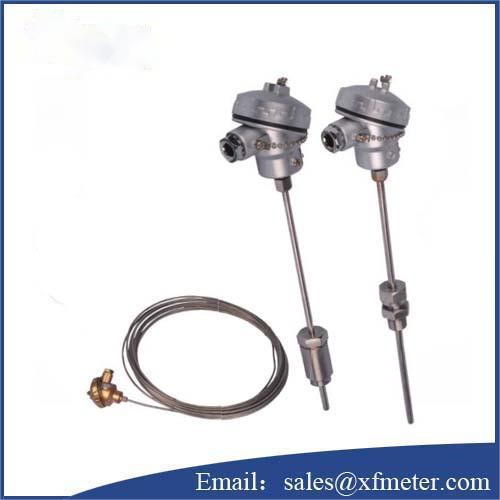

WZ Sheathed RTD

WZ Sheathed RTD

  • Explosion Grade: ExdIICT4~CT6
  • Delivery: 1 week Exw
  • Minimual Order Qty: 5pcs
  • Product description: High quality and competitive price of WZ Sheathed RTD manufacturer in China. Email: sales@xfmeter.com
  • INQUIRY

Brief introduction

The WZ Sheathed RTD is temperature sensor with a smaller diameter comparing with the assembly type resistance. And it is easy to bend with a good anti-vibration performance.

Product's Technical Parameters

Pt100:     Grade A, Ro =1000.06Ω

Model

Graduation No

Temperature measuring

range(℃)

Accuracy

Allowable difference△t

WZPK

Pt100

200~500

A

B

±(0.15+0.002|t|)


Working Principle

The value of WZ Sheathed RTD will be changed along with temperature change. Display instrument will be indicated the temperature value corresponding to resistance value.

Model and spec

W

Z

P

K

Description

-

1

No fixed device

2

Fixed thread

3

Movable thread

4

Fixed flange

5

Movable flange

Connection type

0

Easy type

2

Splash proof

3

Water proof

6

Socket type

7

Connecting wire

Junction Box

3

φ3

4

φ4

5

φ5

6

φ6

Diameter

W

Z

P

K

-

Note: For special requirement of the WZ Sheathed RTD, please contact the manufacturer.
