Magnetic level gauge

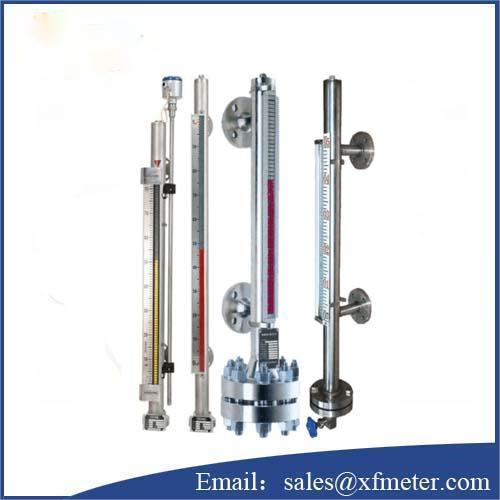

UHZ series magnetic level gauge

Overview
UHZ series magnetic level gauge is a kind of field indication and control instrument, which is mounted outside or on the top of the tank to indicate and control the liquid level in the tank/vessel .
The indicator consists of magnetic color chips , when the magnetic floating ball inside the tube rises with the liquid level , the magnetic color chip is turned over due to the magnetic field and the color changes from red into white or from white into red , displaying the liquid level instantly . According to the user’s requirement , 4-20 ma remote transmission signal transmitter , switch signal transmitter , digital liquid level display and etc. It can also be mount on the top of tank . Magnetic level indicator is applied to the measurement of the liquid level of surface in open or closed pressure vessel . High temperature , high pressure and low density special float design , high quality of anti corrosive material such as stainless steel SUS 304 or SUS 316L , Teflon PTFE , polypropylene(PP) ,and conbined with advanced tech application such as X-ray detection, cold-rolling ,broaching weld , these all ensure the product can be qualified and stable .

Feature
Immediate and accurate response to level changes, giving clear and sharp legibility.
Continuous indication of liquid level.
Local and remote display.
Point switching facilities.
Robust, shockproof and completely sealed for safety.
No leakage to atmosphere.
Particularly suitable for dangerous or toxic fluids.
Ideal for liquid interface applications.
Powerful omni-direction magnet system – guide-free float.
Display can be rotated through 360˚ irrespective of float position.
Automatic float warning.
Unlimited length.
Top mounted ,side loading ,top loading options.
PTFE/PFA lined, PP, PVDF and uPVC versions.
Eliminates preventative maintenance
