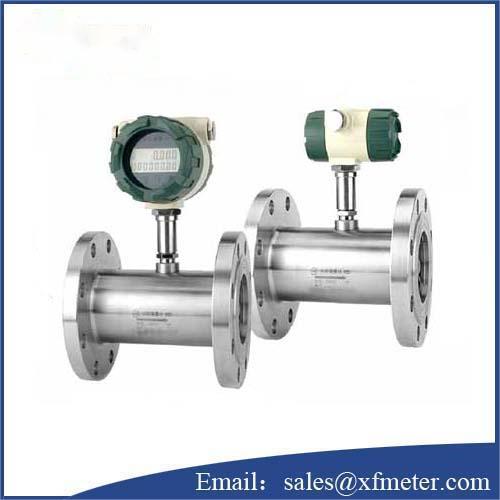

LWGY Turbine Flowmeter

LWGY Turbine Flowmeter

Products Description

LWGY Series turbine flowmeter from Xunfei is simple, compact, accurate and sensitive with excellent reproducibility, easy to install and maintenance, widely used in closed pipeline liquid which is not corrosive to stainless steel 1Cr18Ni9Ti、2Cr13, corundum A1203 and hard alloy, doesn’t contain impurity like fiber and particle and move viscosity is less than 5×10-6m2/s. For liquid of which viscosity is more than 5×10-6m2/s, before using you have to demarcate it. It’s also capable of quantitative control and limit alarm when matched with displayers, energy-saving and ideal.

Performance and features

High accuracy, generally it’s ±1%R、±0.5%R, of high accuracy type,±0.2%R is also available;

With good repeatability, short term repeatability is up to 0.05%～0.2%;

It outputs pulse frequency signal, applicable to compute totalized value, without zero drift and anti-interference .

It can gain very high frequency signal(3-4KHZ) of which definition is strong;

Wide rangeability, middle and large diameter is up to 1:20, small diameter is up to 1:10;

Compact and light structure, convenient to install and maintenance, flow capacity is large;

Applicable to high pressure measurement, no need for hole on the body;

Various special sensor which is customized, like low-temperature type, bi-direction type, underground type;

Insert type which is applicable to large diameter, with small pressure loss , easy to install and maintenance.
