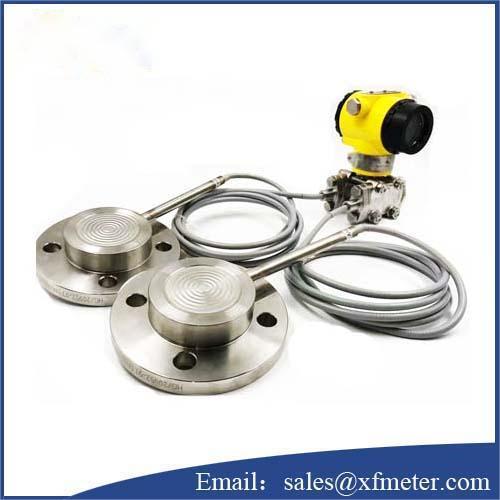

3851 Double flange differential pressure transmitter
Brief Description
3851 double flange differential pressure transmitter adopts advanced-technology high-accurate compact smart sensor, to compensate temperature and static pressure with digital compensation technology which improves measuring accuracy and decreases temperature drift. With long-term stable performance, reliable and strong self-diagnose capacity which makes it popular among transmitter market.
Technical Parameters
Output signal: 4~20mAoutput with HART® protocol digital signal(two-wire system)
Power supply: Outside power24V DC, (power range 12V~45V)
Installation: Explosion-proof dⅡCT5, intrinsic safety iaⅡCT5
Drift features: Range upper and lower limit shall not exceed range limit after positive and negative drift. Maximum positive drift is 0.975URL, maximum negative drift is-URL at minimum range.
Temperature range: medium temperature -40~104℃, storage temperature -40~85℃, working temperature -40~85℃/-20~70℃ (with digital head)
Relative humidity: 0~100%
Damping: time constant within 0.2~32.0S is adjustable
Start time: 3S, no need to preheat
Performance: under standard test conditions like without drift, 316stainless steel isolation diaphragm etc.
Range ratio: 40:1
Static pressure and overpressure limit:
input pressure of 0~13.8MPa (absolute pressure) to any side of transmitter, it will not be broken;
transmitter can work under static pressure between 3.45kPa (absolute pressure) ~13.8MPa(gauge pressure)
flange pressure: 68.9MPa
