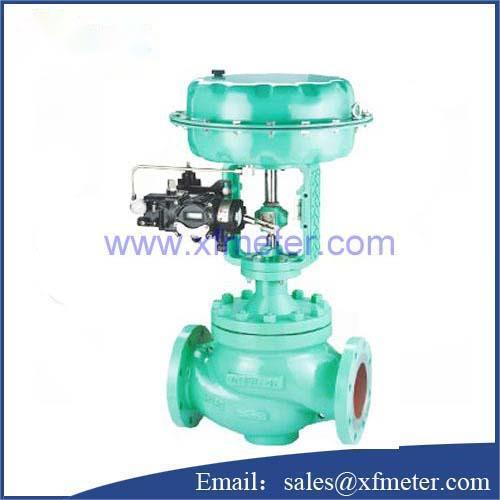

XF62 Cage Guided Control Valve

Product Introduction

XF62 Cage Guided Control Valve is a control valve with balanced pressure and high performance. It applies to flash steam and cavitation situation caused by pressure drop, solid sleeve can protect the valve body from flash steam and cavitation. The flow channel is S type, with small pressure drop, large flow and wide adjustable range. Valve disc pilot area is large with excellent vibration-resistance. Regulation performance is compliable with IEC and GB standard. Pneumatic control valve is equipped with multi-spring diaphragm actuator with compact structure and large output. It is widely used in high-low temperature and high-pressure process pipelines which require good reliable and closure performance. With various optional materials and available designs, this valve can be used in different services and industries (such as chemical industry, gas, power station, food, metallurgy and mining, etc).

Technical Specification

Valve body:

Type: straight cage ball type

Nominal size: 40 - 600mm

Working pressure: ANSI125、150、300、600； PN1.6、4.0、6.4MPa

End connection: Flange, BW, SW (applicative for DN15-DN50)

Material: WCB，WC6，WC9，C5，LCB，LC2，LC3，CF8，CF8M etc.

Valve bonnet : Standard type (P)  : -17-+230℃

Extended I type（E1）：-45-17℃、+230-566℃
Extended II type（E2）： -100-45℃

Extended III type (E3）： -196-100℃

Cooling fin type：+230-600℃

Packing gland : Bolted compressed-type

Packing : V-type PFTE, PTFE asbestos and flexible graphite

Trim

Valve disc : Pressure balanced cage type disc

Control characteristic: Equal percentage, linear, quick open

Trim material:304,304 overlay STL, 316,316 overlay STL, 316L,17PH etc.

Performance
Leakage rate: Metal seat：accordance with ANSI B16.104IV level which is less than 0.01% of rating CV.

Nonmetal seat: accordance with ANSI B16.104IV level which is less than 10-7 of rating CV.

Adjustable: 50:1（Optional 100:1）

Variation:±1%( with positioner) ±3% (no positioner)

Linear: ±2%( with positioner) ±5% (no positioner)

Accessories ( As per requirements)

Positioner, Filter Regulator, hand wheel, limit switch, solenoid valve, valve position transmitter, pneumatic valve, speed increaser, lock up valve etc.
